Electric clamp

Features:

• Measuring AC (AC) voltage – 1V to 450V

• Measurement of DC (DC) voltage – 1V to 600V

• Measuring AC (AC) – 0,01 A up to 400A

• Measuring resistance

• Measurement accuracy diodes

• Audible signal at low resistance

• button to freeze the display

• Exclusion of instruments over time to preserve battery

Category: Measuring instruments

Description

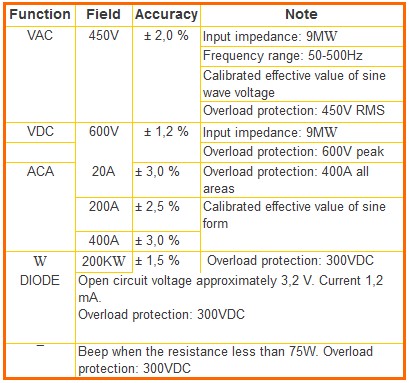

Specification (23 ± 5 °C , < 75% humidity)

Attention!!!

• Maximum voltage between terminals is 600VDC or 450V RMS

• LCD display (1999), refreshes every 2-3 seconds

• polarity indicator “-”

• Indicator for excessive measurement area “I”

• weakened battery indicator

• Power supply: 2×1, 5V AAA

• Temperature range: 0 ° C ÷ 40 ° C

• Weight: Approx 145g (with battery)
